Feature |
ㆍ light weight and high strength | ㆍ fire-resistant |
| ㆍ good light transmission | ㆍ Dramatic aesthetics for diverse applications | |
| ㆍ Self-cleaning | ㆍ short construction time | |
| ㆍ good durability (over 25 years) | ㆍ good sound absorption (Solus 450A) |

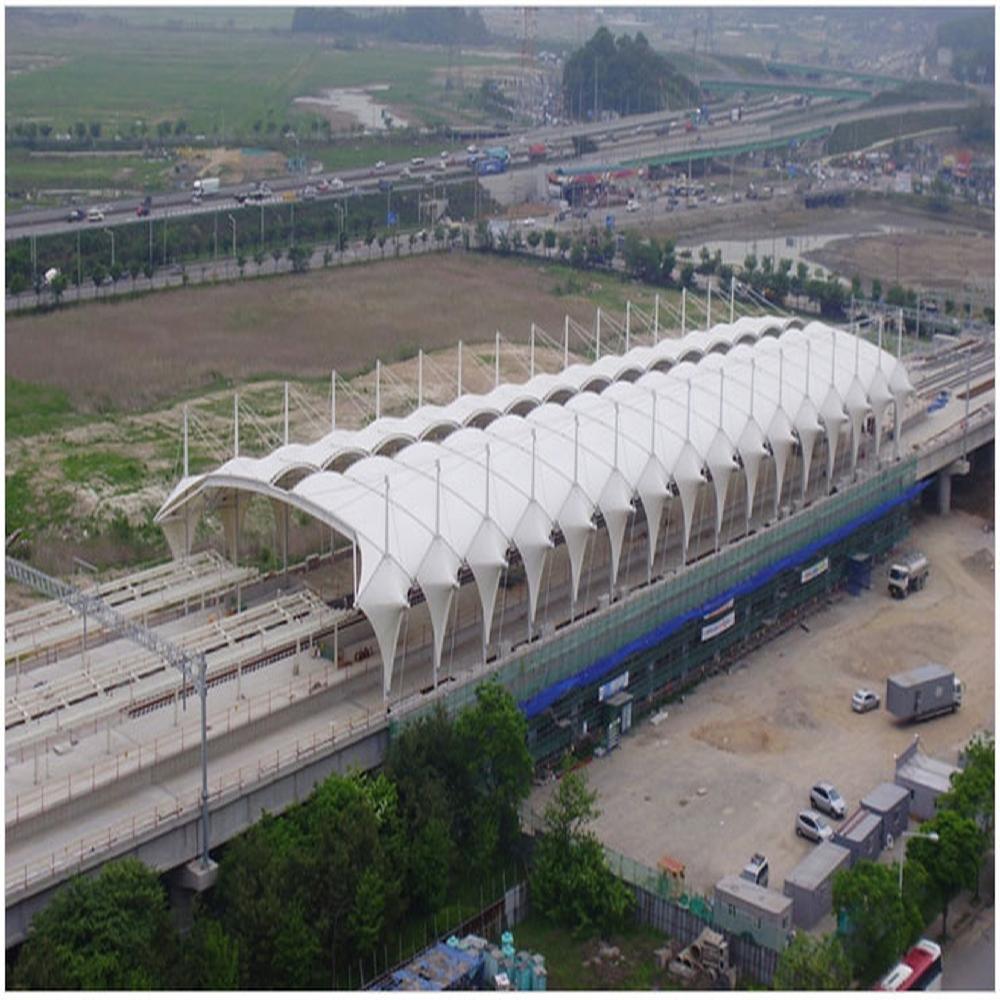

| Application | ㆍ commercial facilities | ㆍ bus and train stations |
| ㆍ traditional markets | ㆍ lounge facilities and landscape facilities | |
| ㆍ theaters |

| Product | ㆍ Solusfor structure | : Solus 1500 | |
| Solus 1300 | |||
| Solus 1120 | |||
| Solus 1110 | |||
| Solus 850 | |||
| ㆍ For sound absorption | : Solus 450A | ||
| ㆍ For interior | : Solus 400SWL | ||
| Solus500SGL/500SSL/500W | |||

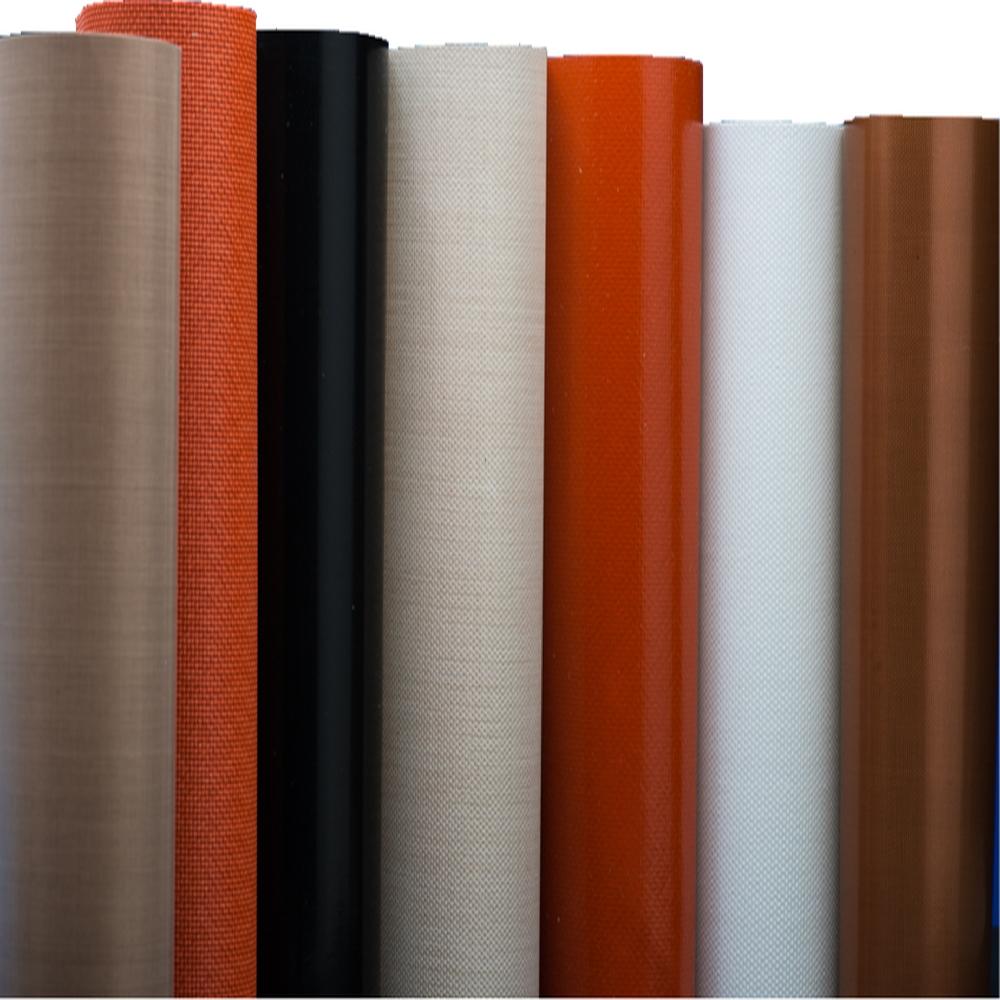

| ㆍ For Colored product | : for structure + Silver/Gold/Green color | ||
| ㆍ For photocatalyst products | : for structure + TiO2 photocatalyst | ||
| ㆍ For insulation products | : for structure + Low-E coating |

| Product name | Solus 850 | Solus 1110 | Solus 1120 | Solus 1300 | ||
| Coating | PTFE | PTFE | PTFE | PTFE | ||
| Base Fabric | Woven "EC6" glass EC6 68TEX x 3 Warp 11 Weft 9 |
Woven "EC6" glass EC6 68TEX x 3 Warp 11 Weft 9 |
Woven "EC3" glass |
Woven "EC3" glass ECB 1504 x 210 x 8 |
||

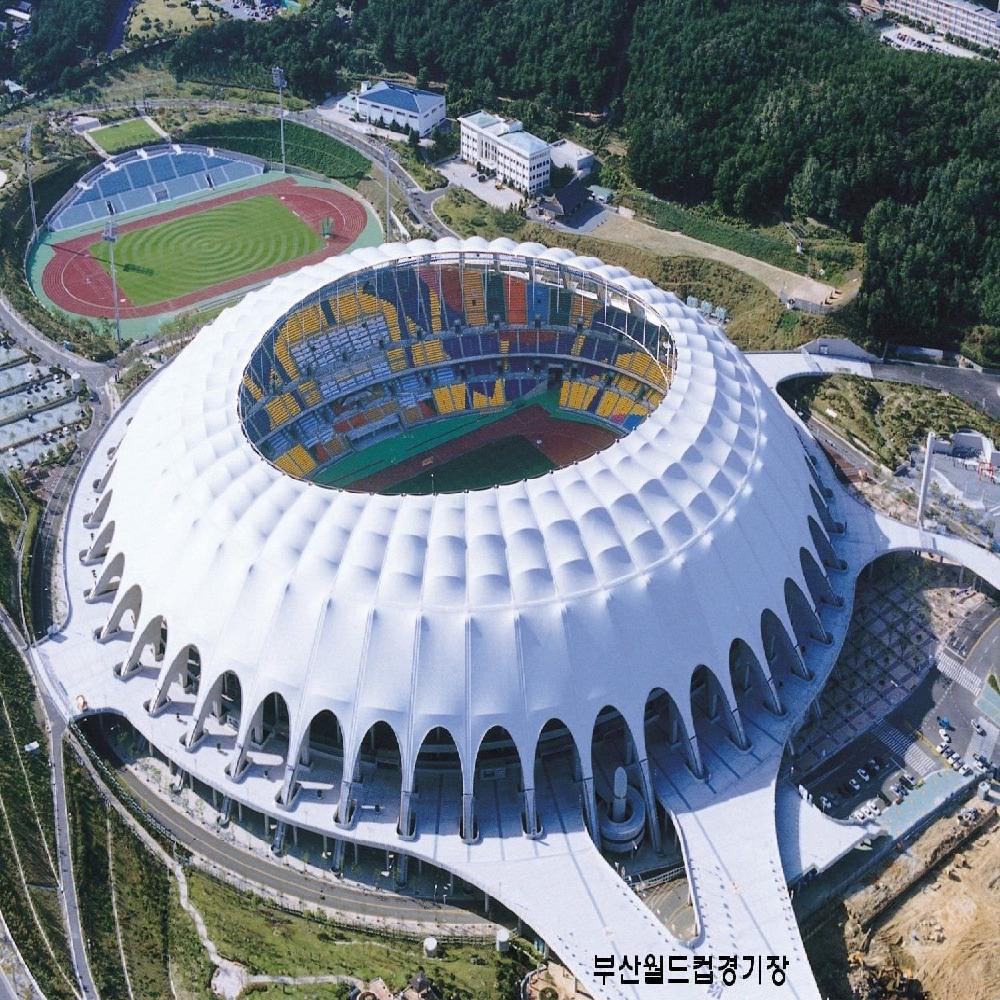

| Application | Small Air & Tensile structures |
Air & Tensile structures, clear spans, tesion tents |
Air & Tensile structures, clear spans, tesion tents |
Air & Tensile structures, clear spans |
||
| Item | Unit | Value | Test Method | |||
Coated Fabric Weight -(±5%) |
g/㎡ | 850 | 1100 | 1100 | 1335 | DIN EN 22286 |
| Thickness-(nominal) | micron | 510 | 600 | 620 | 800 | DIN EN 22286 |
| Strip Tensile-Dry | K S K 0512:2006 | |||||
| Warp-(min.) | N/5cm | 4800 | 4800 | 6200 | 7500 | |
| Fill-(min.) | N/5cm | 3600 | 3600 | 4000 | 5000 | |
| Strip Tensile-Wet | ||||||
| Warp-(min.) | N/5cm | n.a. | n.a. | n.a. | n.a. | |
| Fill-(min.) | N/5cm | n.a. | n.a. | n.a. | n.a. | |
| Tear Strength | K S K 0537:2009 | |||||
| Warp-(min.) | N | 205 | 205 | 205 | 225 | |
| Fill-(min.) | N | 205 | 205 | 205 | 225 | |
Coating Adhesion -(min.) |
N/5cm | 50 | 50 | 70 | 80 | K S K 0533: 2008 |
Elongation at break -(uniaxial) |
K S K 0521: 2006 | |||||
| Warp-(min.) | % | 3~10 | 3~10 | 3~10 | 3~10 | |
| Fill-(min.) | % | 5~17 | 5~17 | 5~17 | 5~16 | |
Solar Transmission (550nm) |
% | n.a. | n.a. | n.a. | n.a. | VIT Test |
Solar Transmission (nominal) |
% | 15~25 | 15~25 | 15~25 | 7.5~17.5 | ASTM E-424-71 |
Solar Reflectance (nominal) |
% | 70~80 | 70~80 | 70~80 | 70~90 | ASTM E-424-71 |
| Available Width | m | 2.9 | 2.85 | 2.85/3.85 | 2.85/3.85 | |
| Color | - | White(after exposure to sunlight) |
White(after exposure to sunlight) |
White(after exposure to sunlight) |
White(after exposure to sunlight) |
|
| Fire Perfomance | ||||||
| Noncombustibility of Substrate | Pass | Pass | Pass | Pass | ASTM E-136 | |
| Intermittent Flame | - | Class A | Class A | Class A | ASTM E-108 | |
| Spread of Flame | - | Class A | Class A | Class A | ||
| External Fire Exposure Roof Test | Class AA | Class AA | Class AA | Class AA | BS 476: Part 3 | |
| Fire Propagation | Class 0 | Class 0 | Class 0 | Class 0 | BS 476: Part 6 | |
| Spread of Flame | Class 1 | Class 1 | Class 1 | Class 1 | BS 476: Part 7 | |
